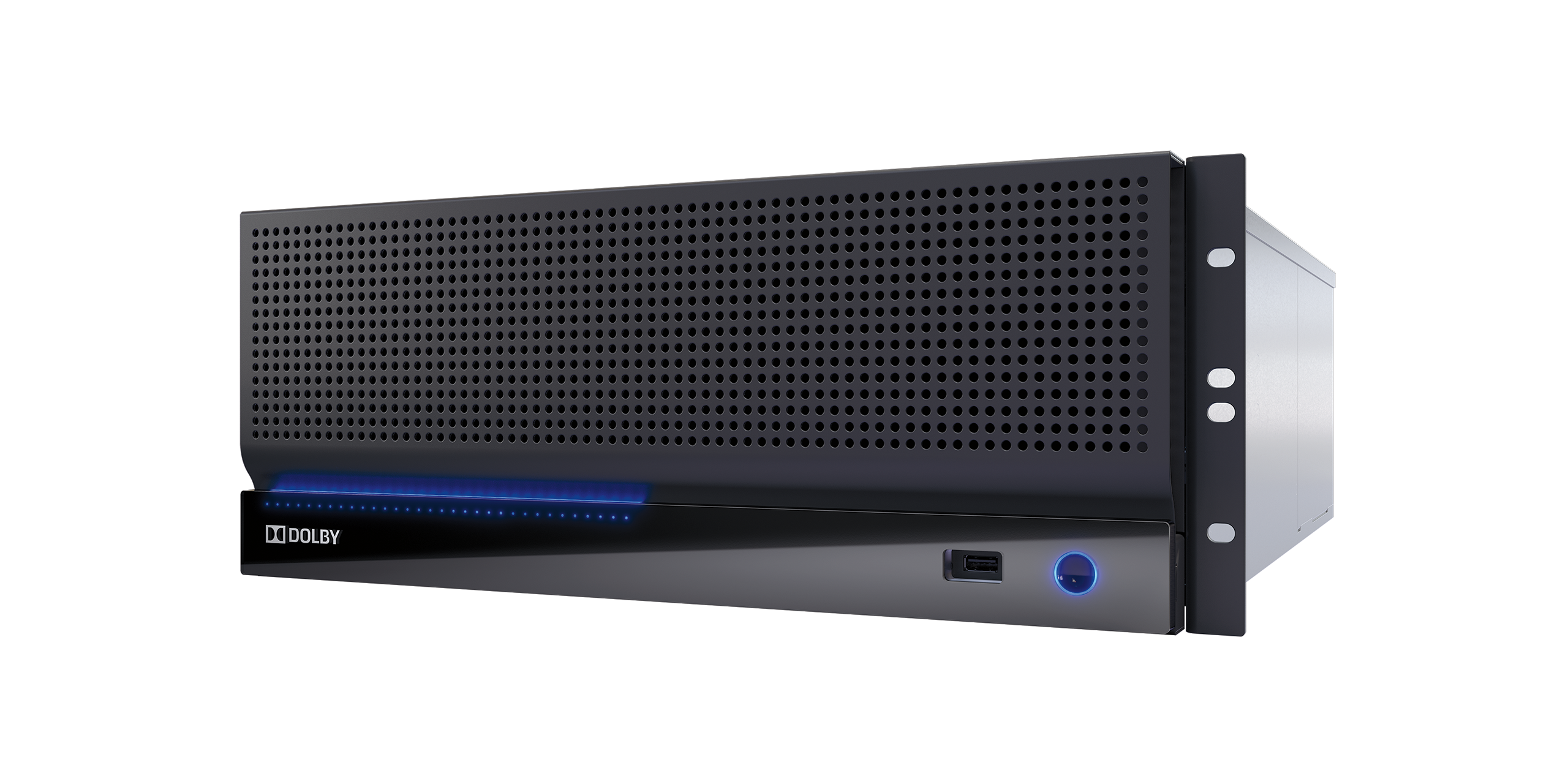

Dolby Multichannel Amplifier

The Dolby® Multichannel Amplifier is an advanced, high-density design that can replace up to 16 stereo amplifiers. With less equipment to install, power, and maintain, you get a simpler and more efficient installation. The Dolby Multichannel Amplifier is available in three configurations, with 16 channels (DMA16302), 24 channels (DMA24302), or 32 channels (DMA32301), and includes enhanced power handling for lower impedance loudspeakers. The 16-channel (DMA16302) and 24-channel (DMA24302) configurations provide an 8-channel analog input module that allows direct integration with both legacy Dolby cinema processors and other cinema processors used in 5.1/7.1 surround sound installations. The Class D amplification topology is designed to deliver high-performance audio quality on every channel.

The Dolby Multichannel Amplifier is designed for reliability. It includes a custom-built power supply with built-in redundancy, power sharing, operational monitoring, and fault detection. The Dolby Multichannel Amplifier power supply enables the system to operate from a 100 to 240 VAC, 20 amp service without tripping the AC main circuit breaker. The Dolby Multichannel Amplifier automatically detects maximum and net power availability, as well as certain operational and environmental conditions, and adjusts channel gains based on power supply, load, and fault conditions.

Features

• Available in three configurations (16, 24, or 32 channels)

• 4U rackmount chassis

• Universal power supply 100 to 240 VAC

• Custom-built power supply with built-in redundancy

• Internal crossovers and signal processing to improve your cinema’s sound

• Web-based UI for easy access from anywhere on the theater network

• Front-panel status/signal presence LEDs

• Long and short rack rail kits

• Easily integrates with CP850, CP950, or IMS3000
