Dolby CS136MH Mid-High Screen Channel Speaker

Superior coverage. Lower distortion.

A primary component of our new System 136, the Dolby CS136MH is one of our newest speaker innovations that features a proprietary asymmetrical dual-entrant horn to deliver consistent audio coverage and uniform volume shading for every seat in the venue.

Utilizing custom compression-driver technology, the CS136MH yields greater intelligibility and enhanced Mid- and Mid-High-frequency performance.

With intuitive ergonomic design and features, the Dolby CS136MH allows for quick, easy installation and service.

Built on the foundation of Dolby’s industry-leading system design and support philosophy, the Dolby CS136MH provides extended coverage and streamlined integration for premium large-format cinemas.

Features

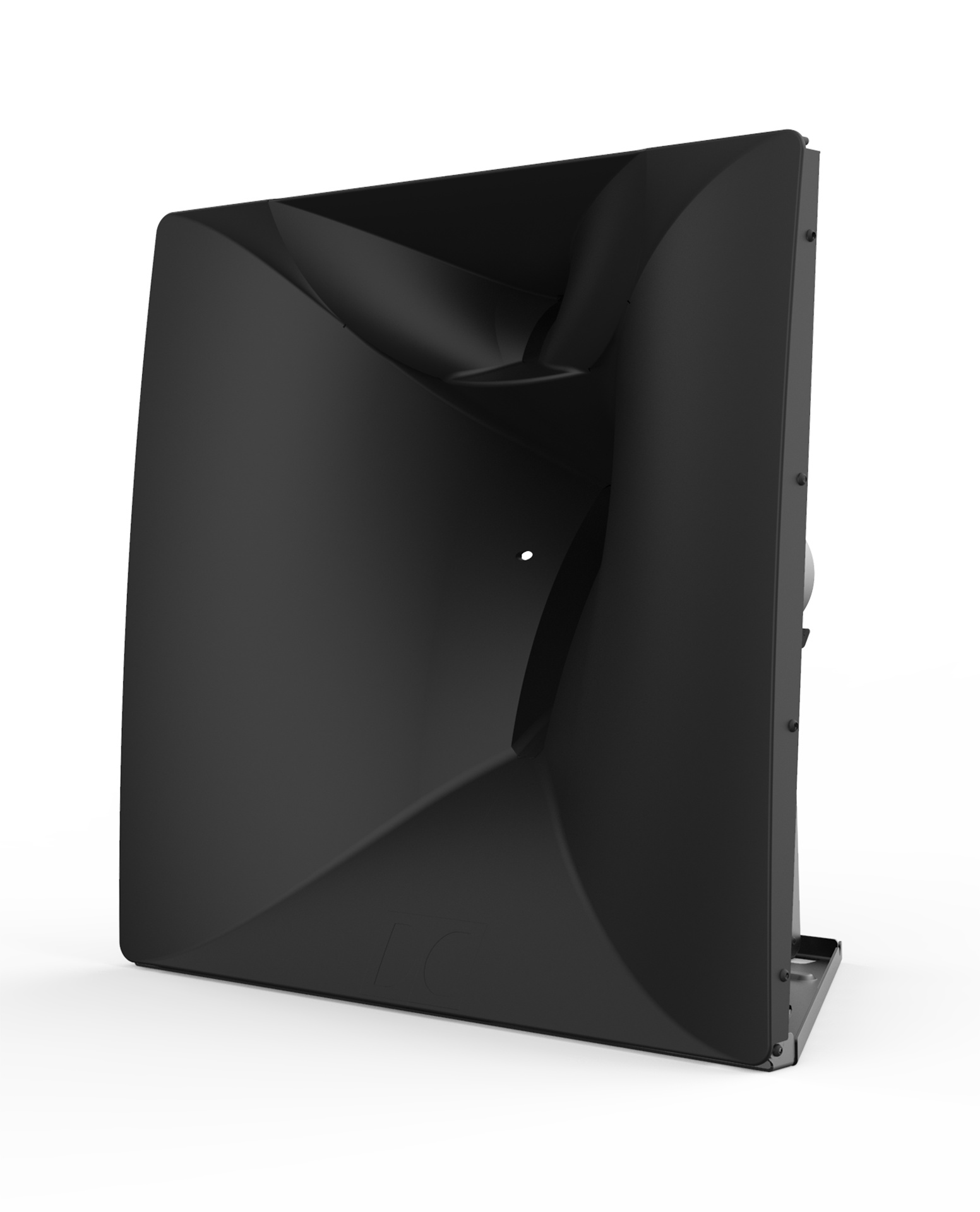

• Dual-entrant asymmetrical horn design allows for close driver proximity which yields improved pattern control around the crossover frequency and provides even coverage and volume shading for the entire auditorium

• Custom ring radiator mid-frequency compression driver covers the entire primary vocal-range (400 Hz–4 kHz), greatly enhancing intelligibility, sensitivity, and power handling

• Advanced input plate featuring high-current, spring-loaded terminal block and unique flip-card PCB electrical routing, allows quick, tool-free installation, and easy selection of CS136MH passive or bi-amp configurations.

• Quality high-frequency compression driver — exhibits superb performance in the 5Hz–10kHz articulation ranges, with a significant reduction of Total Harmonic Distortion (THD) compared to some competitive designs

• Preassembled horn design simplifies setup while reducing freight costs

• Intuitive tilt and pan mechanisms can be used with laser aiming sights in the speaker horn. This provides quick and accurate aiming of the horn using a common laser pointer.
