    SP4K-13CHC

  • 제품대분류

    영상시스템
  • 제품 카테고리

    PROJECTOR
  • 제품 브랜드

    BARCO
  • 제품소분류

    Barco Seires 4 - 4K

제품 상세

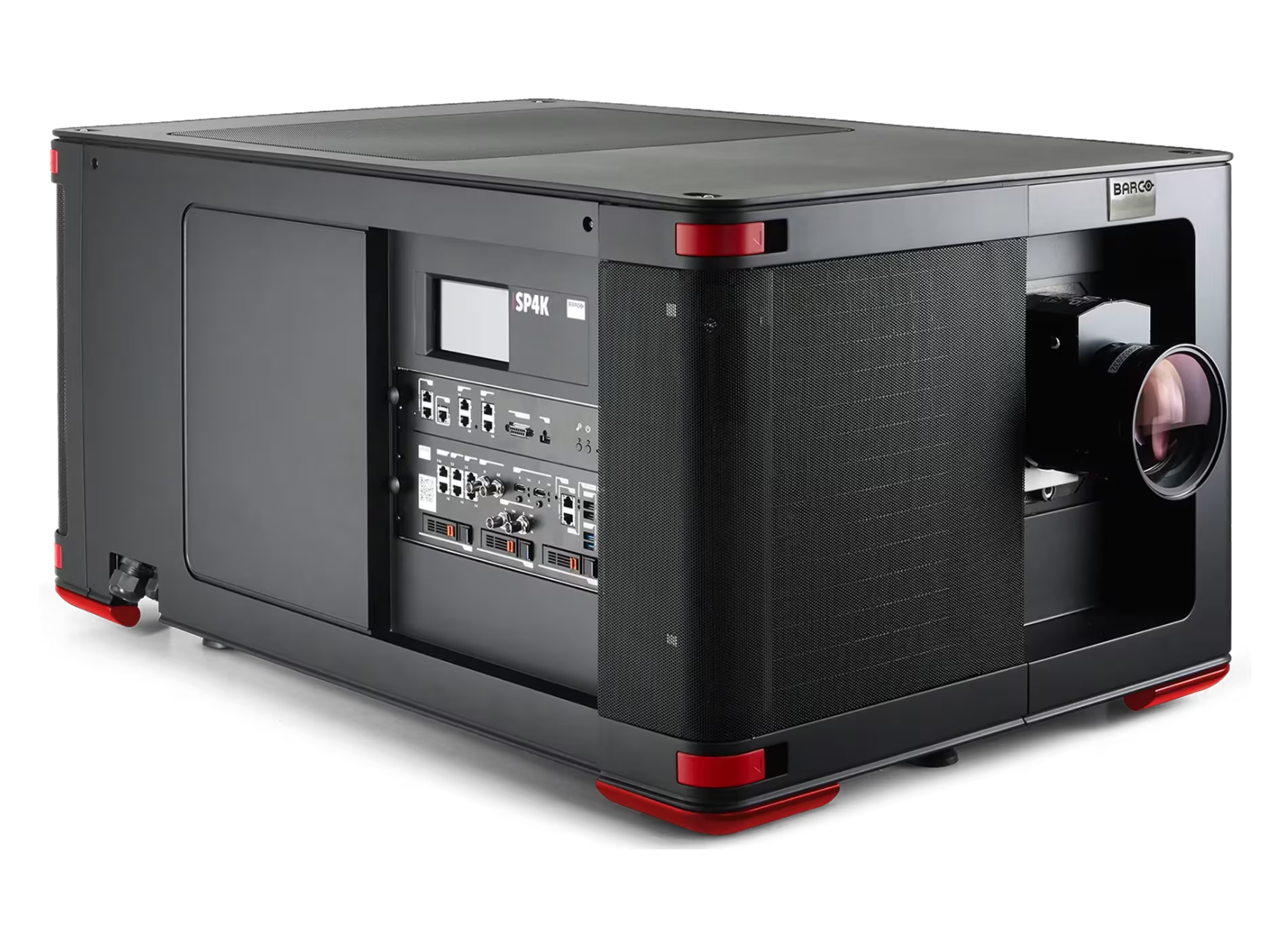

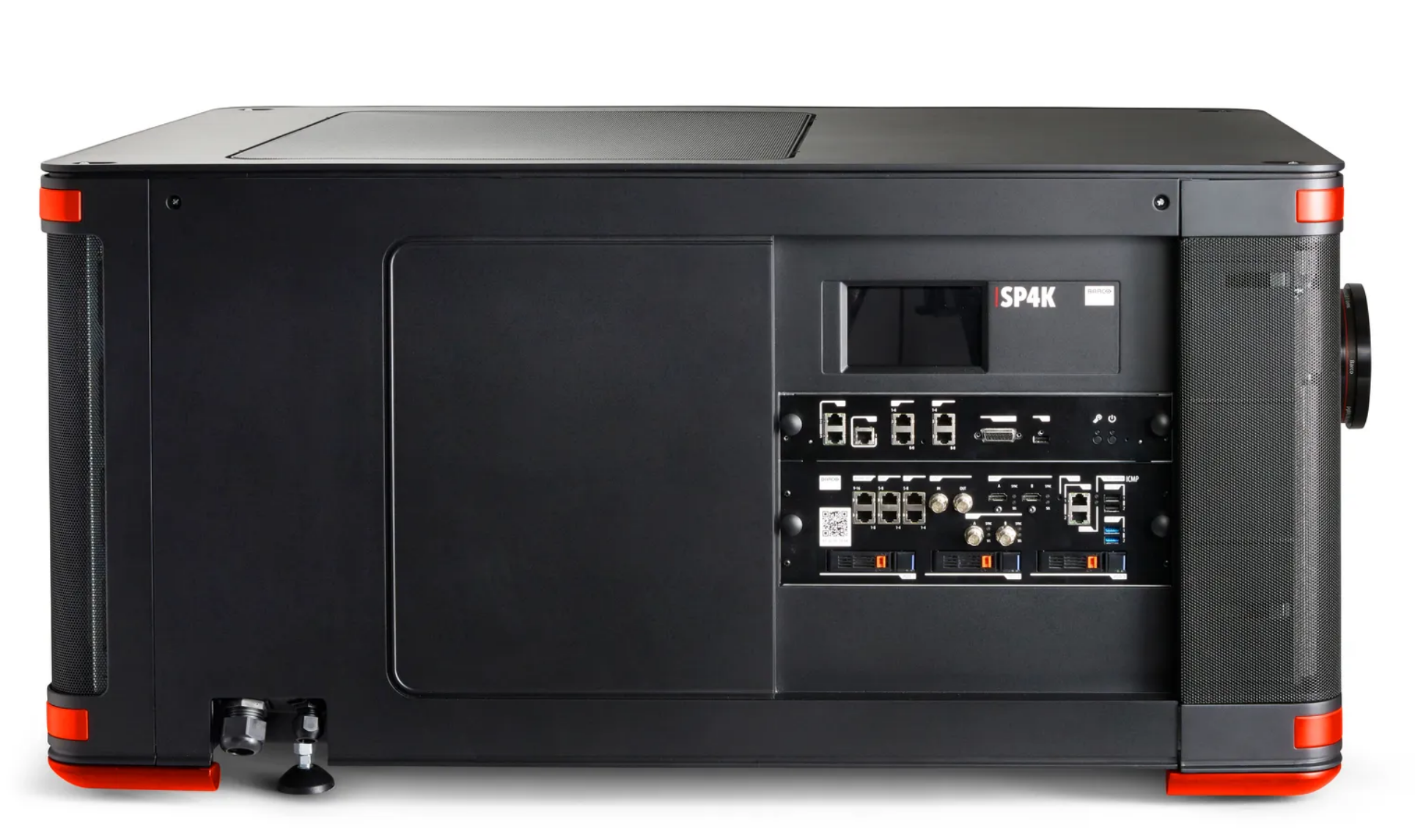

SP4K‑13CHC


  • SP4K Series
  • 13,000 lumens high contrast laser cinema projector
  • 탁월한 영상 품질
  • 현재는 물론 미래까지 대비할 수 있는 솔루션
  • Barco EcoPureTM
  • 간편한 유지보수



SP4K-13CHC는 업계 파트너와 긴밀히 협력하여 설계된 Series 4 포트폴리오의 일부입니다.

콘텐츠 생성, 전시 및 기술에 대한 시장의 추세가 반영되었습니다.

그 결과, 최고의 이미지 품질을 위해 향상된 명암비를 제공하는 맞춤형 디자인의 시네마 프로젝터로 탄생했습니다.

SP4K 모델은 매우 다양한 구성이 가능하여 선택의 자유를 선사합니다. 특정 요건에 맞춰 이용 가능한 옵션을 선택할 수 있습니다.


탁월한 영상 품질

시리즈 4는 네이티브 4K 해상도, 더 높은 명암비, 개선된 밝기 균일도를 영화관에 제공합니다.

SP4K-13CHC는 프리미엄 영화관을 위한 5000:1의 향상된 명암비를 구현합니다.

Barco Active Image ManagementTM와 특허받은 정밀 밝기 기술로 자동 화이트 밸런스와 흠잡을 데 없는 이미지를 보장합니다.


현재는 물론 미래까지 대비할 수 있는 솔루션

Barco ColorgenicTM 기술을 통해 Rec. 2020의 98.5% 이상을 구현합니다.

SP4K-13CHC는 4K 120fps 및 HDR 이미지와 같은 미래 혁신 기술을 충분히 지원할 수 있도록 개발되었습니다.

제품의 가동 첫날뿐만 아니라 수명 주기 내내 지속적으로 탁월한 결과물을 전달합니다.


Barco EcoPureTM

50dB(A)의 저소음으로 가동되는 이 프로젝터는 부스리스 운영을 위한 완벽한 준비가 되어 있습니다.

절전 모드에서는 3와트 미만의 전력을 소비합니다. 그뿐만 아니라, 예정된 유지보수 또는 인제스트를 위하여 LAN을 통해 원격으로 전원을 켤 수 있습니다.


간편한 유지보수

시리즈 4 프로젝터는 모듈형 디자인으로 구성되어 비용 효율적인 유지보수가 가능합니다.

단 6개의 Barco Laser PlateTM만으로 모든 광원 구성 요소를 서비스할 수 있습니다.

커버와 필터를 공구 없이 핸들링할 수 있으므로 누구든지 필터를 교체할 수 있습니다. SP4K-13CHC는 모든 기기에 원활하게 통합됩니다.


icon-4K-png icon-easy-servicepng


Specifications


Native brightness
13,000 lumens (typical)
Native contrast ratio
5000:1 (typical)
Digital MicroMirror Device™
3x 0.98" DC4K
Resolution
native 4K: 4096 x 2160
Color gamut
DCI P3 compliant (98.5% of Rec.2020; when measured in xy-color coordinates)
Light source
Laser
Prime lenses

With C-lensholder: 1.09 - 1.40; 1.28 - 1.74

With B-lensholder: 1.6 - 2.4; 1.9 - 2.6; 2.0 - 2.95; 2.3 - 3.65; 2.8 - 4.7

Very High-Contrast TLD+ and B-lenses

Long-term brightness stability
+50,000 hrs @ average usage conditions
Housing
integrated cooling design and patented sealed optical assembly
Dimensions (WxLxH)

Projector incl feet: 710 x 1070 x 547 mm/ 27,95 x 42,13 x 21,54 inches

(710 x 1132x 547 mm/ 27,95 x 44.55x 21,54 inches with B-lensholder)

Weight
105kg/231.5lbs
Power requirements
single phase or triple phase 200-240V 16A
Heat load
7750 BTU/h @ max power @ 40°C
Exhaust airflow
400CFM
Ambient temperature
40°C/104F Max.
Ambient humidity
85% RH max
Altitude
4000m - 13.125ft Max.
Media server
Fully Integrated Barco Alchemy ICMP-X with SSD Storage Up To 8TB eff. Other media server brands** supported.
Power consumption
2.2kW (3W in Eco mode)
Noise Level
50dB(A) @1m, max power and 25°C ambient temperature
3D systems
Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported.
Laser classification
Laser Class 1 - Risk Group 3
User interface
Integrated Touch Display and/or Web-based Communicator Web Analyzer for service
Notes
**projector configuration with ICP-D; contact Barco service for the list of supported brands
