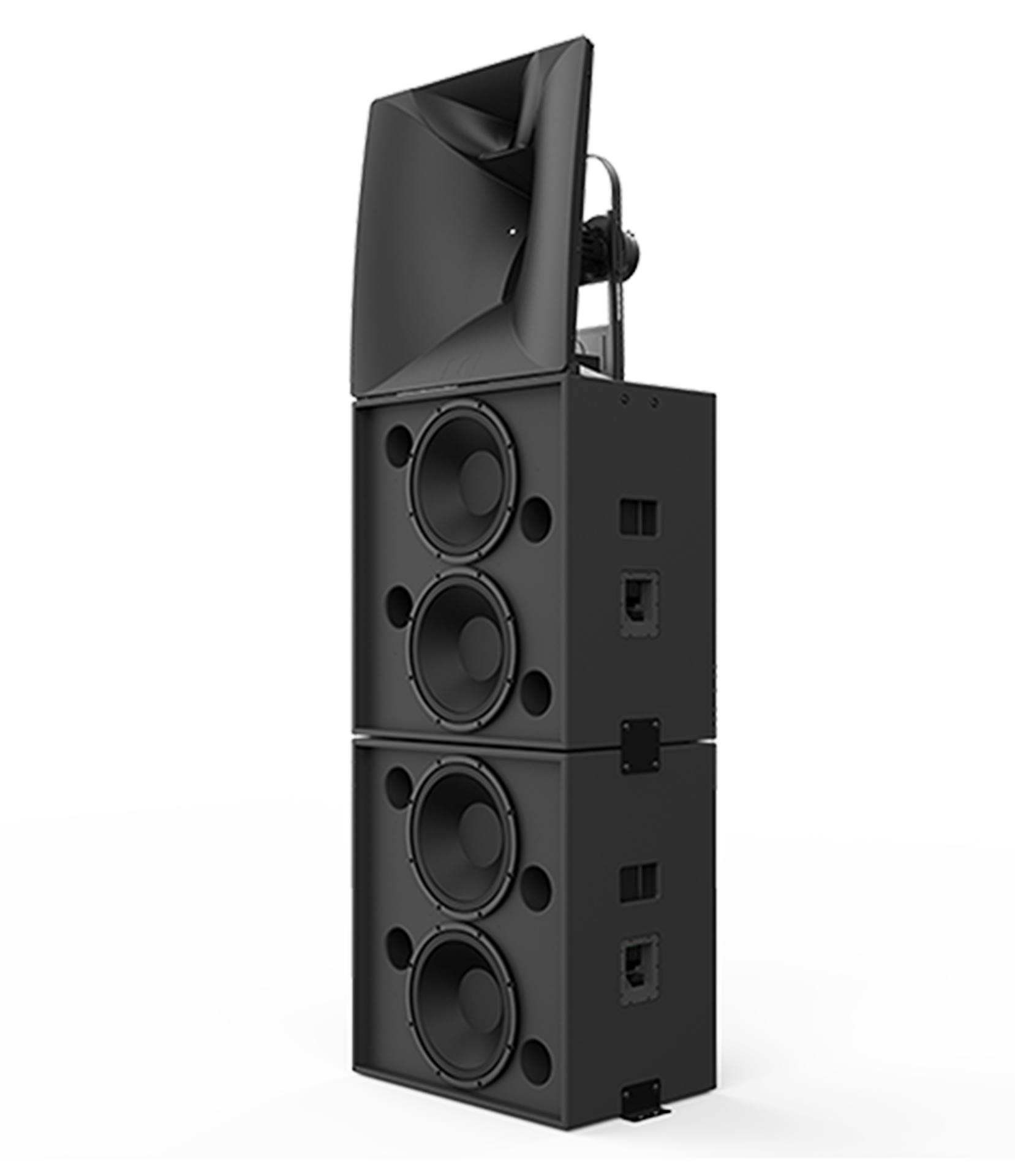

Dolby System 136 Screen Channel Speaker
Superior Coverage. Lower Distortion. Deeper Bass.
The Dolby System 136 is our newest speaker innovation. The speaker utilizes a proprietary asymmetrical dual-entrant horn to deliver consistent audio coverage and uniform volume shading for every seat in the venue, including Dolby Atmos® rooms up to approximately 165 feet (50.3 m) in depth.
Utilizing custom compression-driver technology, superior enclosure design and higher-quality woofers, the Dolby System 136, consisting of (1) CS136MH and (2) CS136LF units, yields greater intelligibility and enhanced low-frequency extension.
With intuitive ergonomic design and features, the Dolby System 136 allows for quick, easy installation and service. Built on the foundation of Dolby’s industry-leading system design and support philosophy, the Dolby System 136 provides elevated PLF performance and streamlines speaker integration.
Features
Dual-entrant asymmetrical horn provides even coverage and volume shading for the entire auditorium
Custom ring radiator compression driver facilitates lower crossover frequency enhancing intelligibility and power handling
Quality wood construction and exceptional bracing delivers unparalleled low frequency extension and articulation
Advanced input plate featuring high-current, spring-loaded terminal block and unique flip-card PCB electrical routing, allows quick, tool-free installation and easy selection of tri-amp or quad-amp system configurations. The CS136LF input flip-card allows for parallel (4 O hm), or direct to individual driver (8 O hm) connection
Preassembled horn design simplifies setup while reducing freight costs
Intuitive tilt and pan mechanisms can be used with laser aiming sights in the speaker horn. This provides quick and accurate aiming of the horn using a common laser pointer
Shallow, 30.64” depth and side mounted LF input plates enable both easy installation and service access in challenging spaces
Tie-plates (included) secure CS136LF cabinets together, and floor brackets (sold separately) allow for surface connection of the entire system stack, to the auditorium
